Advanced Optical & Sampling Solutions WITH RAM2000 Systems


KASSAY offers a comprehensive range of monitoring accessories designed to enhance the performance and flexibility of RAM2000 IR and UV spectrometers. Products include precision retroreflectors, high-sensitivity gas cells, and automated positioners for reliable beam alignment and multi-path monitoring. Together, these solutions improve detection sensitivity, data quality, system efficiency, and remote monitoring capabilities.

MONITORING SALES & LEASING

Retro-Reflectors

Robust retro reflector arrays for reflecting IR and UV light energy

INQUIRE

KASSAY’s patented technology enables the widest range of substrates, cube sizes, coatings, precision, and cost-effectiveness.

Corner cube (cat’s eye) retroreflector arrays are used to return light energy emitted by RAM2000 IR and UV spectrometers back to the detector.

Substrates:    Aluminum,  glass
Coatings:        Gold, silver, enhanced UV, (Bare or protected)
Cube size:       1 to 10 inch aperture cubes
Array size:      Up to 30″ arrays
Housings:       Plate, NEMA, or custom enclosures
Protection:     Visors, rain shields,  dust control, and heater options
Accuracy:       2 to 20 arc-sec  per cube



Gas Cells

Optical cells for gas analysis using KASSAY RAM2000 spectrometers

INQUIRE

Straight-pass, multi-pass, ambient, or heated options tailored for specialized applications.

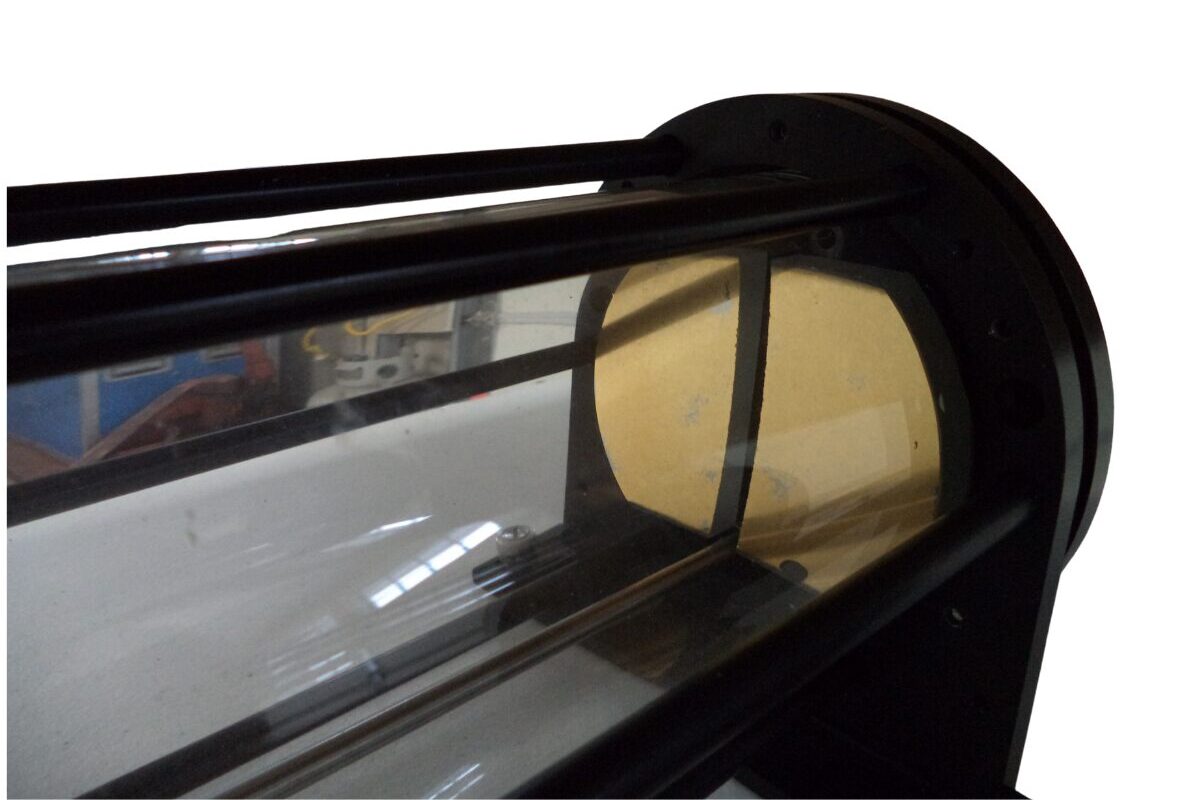

Multiple passes of light through a gas sample cell enhance energy absorption, increasing sensitivity to the target gas and lowering the detection limit. All gas cells are easily integrated with spectrometers, serviceable, and designed for high throughput to preserve energy levels.

KASSAY RAM2000 systems are all compatible with ICL gas cells.    ICL gas cells are available with a wide selection of choices to match the sensitivity requirements for gas measurement application.
Cell Body:  Glass, metal, Teflon.
Path Length: 10cm to 100m, custom.
Heater: Up to 100C with feedback loop controller.
Reflective Coatings:  Gold, silver, EUV, and more.
Windows: ZnSe, CaF2, KBR,NaCl, fused silica, wedged, and more.
Fittings:  Choice of brass, stainless steel, or teflon.



Auto Positioners

Integrated autopositioner for directing IR & UV beam path to multiple discreat locations

INQUIRE

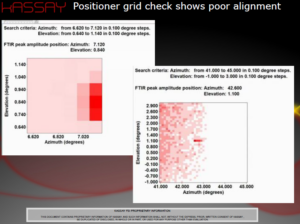

Highly precise and fully automated software control enables remote alignment with retroreflectors.

Designed for automated remote control and continuous positioning of the spectrometer beam to up to six distant retro reflectors. RMMSoft software enables a single spectrometer to collect data from multiple retro reflectors positioned at 360-degree locations up to 1 km away. This advanced technique offers automatic beam path alignment through software control. The reflected signal strength is optimized, ensuring the highest quality data, reduced maintenance, and significant cost savings.

Military spec highly accurate auto-positioner runs for years with virtually no maintenance.
